  SAL Features Applications Available Models

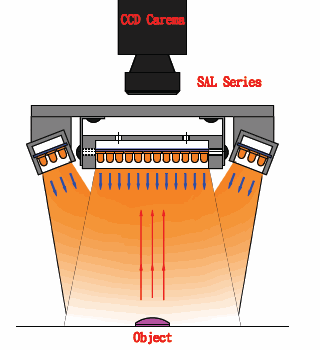

  SAL series Angle Adjustable Light




Compose of 4 units of BL series Bar Light. Each side can be adjusted angle to suit for different height and situations.





l  Adjustable radiating angle from 0 to 90 degrees.

l  Brightness of 4 sides can be controlled independently via a 4 channel Constant Current Controller

(model: PC-24V12W-4).

l  Standard product emitting area 14x50x4, 14x100x4, 14x150x4 mm.

l  Dual functionality - provide both bright filed and dark filed lighting in one light.

l  Optional diffuse plate, extended cable.


l  Best choice for beginning of testing or developing vision system.

l  Lighting source of AOI system for PCBA inspection.

l  Character or printed defect inspection.

l  Edge detection, scratched on glass or shining surface.

  Available Models



Working Distance (mm)

Dimension (mm)



0 - 100

107 x 107 x 28

Emitting Area 14 x 50
